Railways Gallery

View of Gwinear Road station looking west, Cornwall. Possibly at the opening of the Helston branch line on 9th May 1887

'This photograph was probably taken on 9th May 1887, the opening day of the Helston branch line. Every part of the railway infrastructure in view is in almost perfect condition, having been newly installed for the creation of the new junction station. The stone work to the platforms and the locking room has obviously only recently been laid. Even the staff are well turned out. The main line retains the mixed gauge, albeit relaid with cross-sleepered track, whilst the branch line bay has been laid in narrow gauge only. The bay continues beyond the station, to a buffer stop built against the newly cut back end of the original cutting side. The branch line engine is in attendance, almost certainly a 517 class 0-4-2T, complete with polished brass dome. The contrasting painting schemes of the Signal & Telegraph department, responsible for the signal box next to the crossing, and that of the station buildings are clearly evident. In particular the signal box windows sashes are white, whereas those on the station are darker, probably brown. The signal box barge boards are relatively dark when compared with the wall boarding, whilst those on the station appear considerably lighter. The signals are the standard G.W.R. type which was to survive for many years, although at this period only single red spectacle plates were fitted, "all right" being indicated simply by the white light" Information from: The Broad Gauge In Cornwall. M. Jolly & P. Garnsworthy. Gwinear Road station with a locomotive on the Helston branch line with her crew and members of the station staff. Advertising on the station includes 'The Angel Hotel, Helston', 'W & A Gilbey' and 'Moon & Sons'

© From the collection of the RIC

View of St Ives with the railway station in foreground. Around 1880

The St Ives branch was opened on 1st June 1877, by the GWR as successors to the West Cornwall Railway. The stonework of the railway buildings still appears very fresh in this view, which cannot have been taken much later. A slightly different view of a similar date appears in the G.W.R. Journal Special Cornish Issue 1992. The permanent way consisted of 76 Ib bullhead rail in 35 Ib cast iron chairs on cross sleepers, and unlike the mixed gauge main line, was broad gauge only. The viaduct to the right of the picture had three openings of 40 feet and seven of 20 feet, wrought iron girders being carried on masonry piers. The curved station building has a certain Brunelian feel about it, even though completed some 18 years after his death. A small signal box is provided to operate the typical G.W.R. semaphore signal. Two coaches stand in the station, another further along, and what appears to be a saloon at the far end. All are in two colour livery. Goods waggons in the picture consist of about seven opens and three vans, the limited goods traffic being reflected by the small yard of only two short sidings in addition to the two lines through the station. There was also a small engine shed just out of shot to the right. at this date the pilchard industry was at its height, and boats appear everywhere, on the beach, under the viaduct, in front of houses, on the slope behind, and next to the signal box. The image was certainly taken before 1888 as the wooden pier is still in good condition and the quay has not yet been lengthened. Photographer: Edward Ashton

© From the collection of the RIC

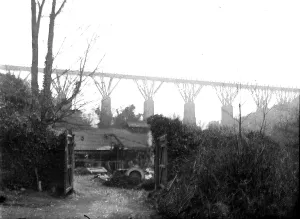

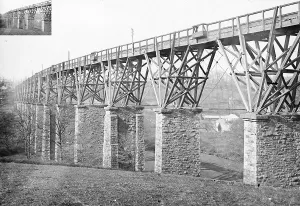

View of the Ponsanooth viaduct, Cornwall. Early 1900s

On the advice of the Victorian railway engineer, Isambard Kingdom Brunel, river crossings for the new Cornish railway line built by the Cornwall Railway Company (1859 to 1889) took the form of wooden viaducts, 42 in total, consisting of timber deck spans supported by fans of timber bracing built on masonry piers. This unusual method of construction substantially reduced the first cost of construction compared to an all-masonry structure, but at the cost of more expensive maintenance. The Ponsanooth viaduct crossed the River Kennall 2 miles north of Penryn. A Class B viaduct 139 feet (42 m) high and 645 feet (197 m) long on 9 piers. It was replaced by a new stone viaduct on 7 September 1930. This is the tallest viaduct west of Truro. In the foreground can be seen Wheal Maudlin (Magdalen) works (former Perran foundry boiler works). Photographer: Unknown

© From the collection of the RIC
